Heat Exchanger for Chemical Industry ASME Tube Bundle Shell
Product Details:
| Place of Origin: | China |
| Certification: | A2,ISO,ASME |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD500-20000/set |
| Packaging Details: | Sea shipping packing |
| Delivery Time: | 20-60days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 3500-4000 sets/year |
|
Detail Information |
Product Description

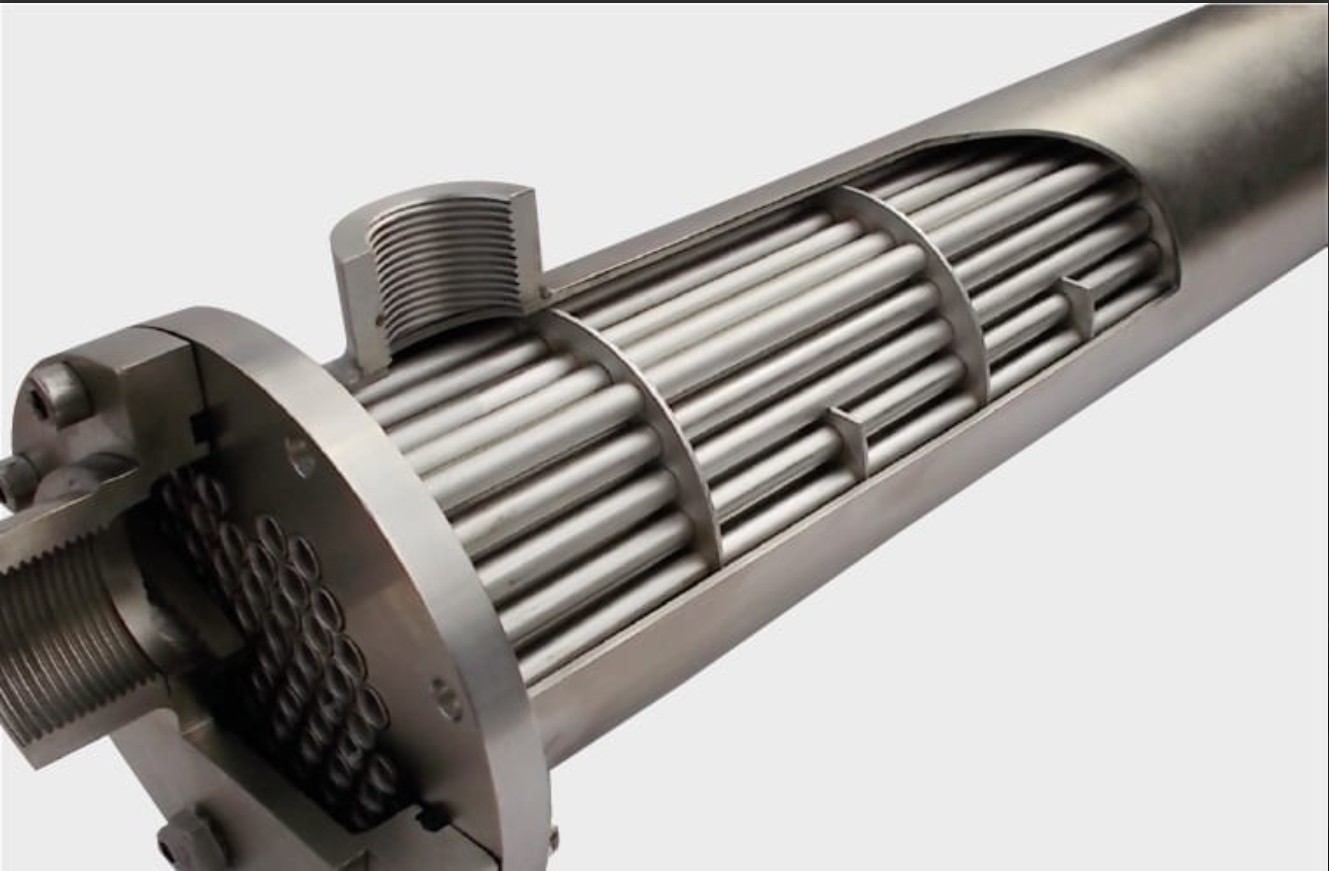

Shell tube heat exchanger
The shell tube heat exchanger is a very common heat exchanger. It can be seen in the fields of thermal power, factory and mines, petrochemicals, urban central heating, food and medicine, energy electronics, and mechanical light industry. The structure of the shell tube -type heat exchanger is simple. It consists of the shell, the heat transfer tube, the folding plate (baffle) and the tube box. Folding fluids perform heat exchange.
Principle of shell tube heat exchanger:
Types of shell tube heat exchanger heat exchanges:
The shell tube heat exchanger heat exchanges material:
Copper, brass, white copper, navy copper, aluminum, etc.;
Carbon steel, Austeen stainless steel, double -phase stainless steel, high -alloy Aolinite stainless steel, etc.;
Nickel alloys, Montoner pipes, Has' alloy tubes, titanium, etc.
Shell tube heat exchanger application:
Processing gas heat exchanger: It is used in petrochemical, oil and gas production, pharmaceutical chemical industry, and other production processes to cool and heat up gas in the production process, especially the heat exchange with pressure gases.
Sanitary shell tube heat exchangers: widely used in industries such as biopharmaceuticals, chemicals, fuel cells and semiconductors. Such as heating and cooling, clean steam condensation and cooling, temperature control, product sampling and processing equipment that needs to be heated or cooling.
Boiler: It is used in the production of chemical distillation such as petrochemical and oil and gas processing as a tower bottom.
Oil cooler: It is mainly used to cool the hydraulic oil and lubricant; the oil cooler is widely used in plastic machinery, engineering machinery, mining machinery, automobiles, steel, wind power, aerospace and other industries.
Concreteer: It is used in chemical production such as petrochemical and oil and gas processing as condensate and cooling equipment; it is used in the refrigeration equipment condenser for heating water, seawater or saline.
Evaporator: It is used as a process liquid evaporator in the process of chemical production; it is used as a refrigeration equipment as a reduction of membrane evaporator, a full liquid evaporator, and a dry evaporator.
Key Specifications
|
Volume (m³) |
2-100m³ |
|
Max Working Pressure(MPa) |
100 |
|
Place of Origin |
Zhejiang, China |
|
Condition |
New |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
Ordinary Product |
|
Warranty of core components |
1 Year |
|
Core Components |
Pressure vessel, Steel plate, custom |
|
Weight |
100 |
|
Warranty |
1 Year |
|
Key Selling Points |
High Productivity |
|
Applicable Industries |
Petrochemical, Bio-Pharmacy, Pulp&Paper, Power Industry, Hydro Power, Metallurgy, Mining industry, Food |
|
Dimension(L*W*H) |
Custom |
|
Inner Material |
Stainless steel/carbon steel |
|
Outer Material |
Stainless steel/carbon steel |
|
Design Pressure(MPa) |
0-100 |
|
Design Standard |
CE/PED ASME |
|
Working Temperature(℃) |
0 - 1200 ℃ |
|
Color |
Customed Color |
|
Material |
304/316 Stainless steel or carbon steel |
|
Package |
Seaworthy |
|
Usage |
Reaction vessel/Storage vessel/Heat exchanger/Separate vessel |
|
MOQ |
1 Set |
|
Selling Units |
Single item |
|
Single package size |
eg.110X110X150 cm |
|
Single gross weight |
eg.1600.000 kgs |
Lead time
|
Quantity (sets) |
1 - 10 |
11 - 50 |
> 50 |
|
Lead time (days) |
60 |
90 |
To be negotiated |
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional manufacturer of machine, with more than 15 years experience.
Q2: Can the capacity be customized?
A: Yes.
Q3: What’s your delivery time?
A: Customized: 20-60 days.
Q4: How do you ship the finished products?
A: By Sea, By Plane, By courier, land transportation.
